Extreme Angle Master Flash® Multi Flash
For the Metal Roofing Industry, with an extreme pitch and specifically designed for either Standard or Retrofit Applications.
For standard or retrofit applications with a 3/12 to 16/12 pitch, while accepting & responding
to the most commonly encountered pipe penetrations. These flashings were designed to seal
existing pipes/vents that require a wrap-around existing or hard-to-reach installation.
Call for Dealer Near You 800-927-4375
Extreme Angle Multi-Flash Master Flash® Features:

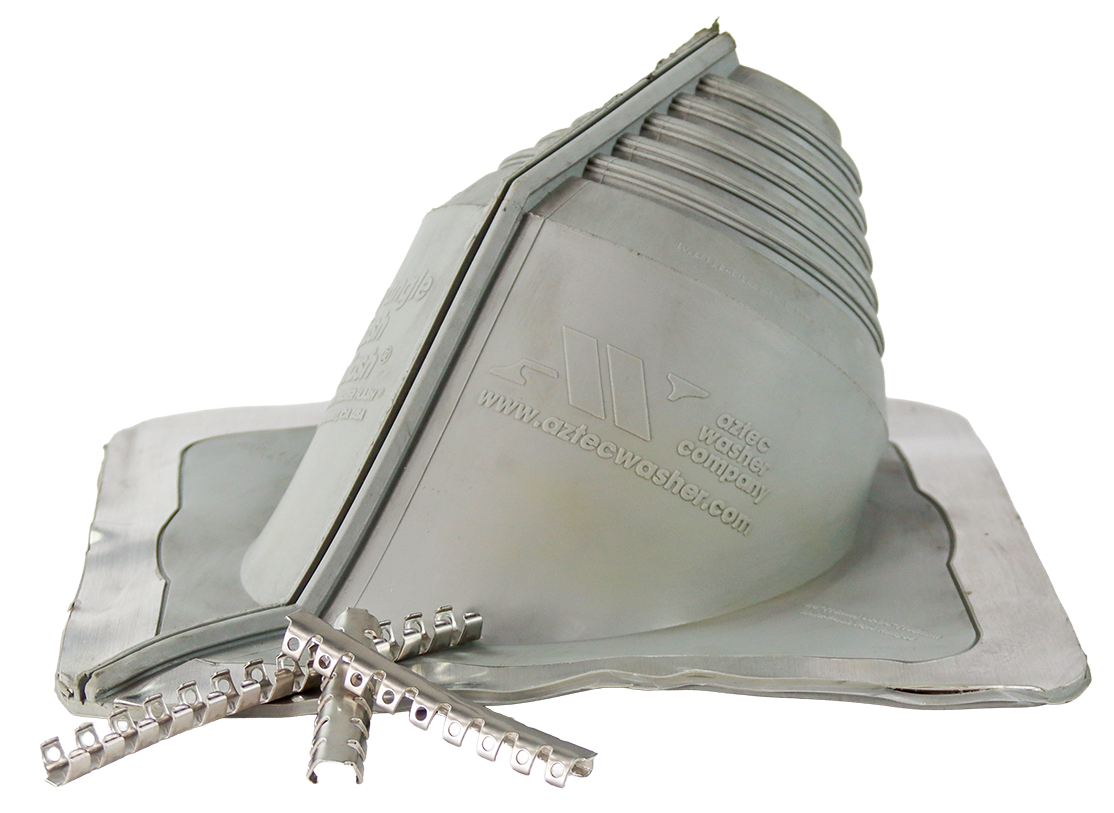

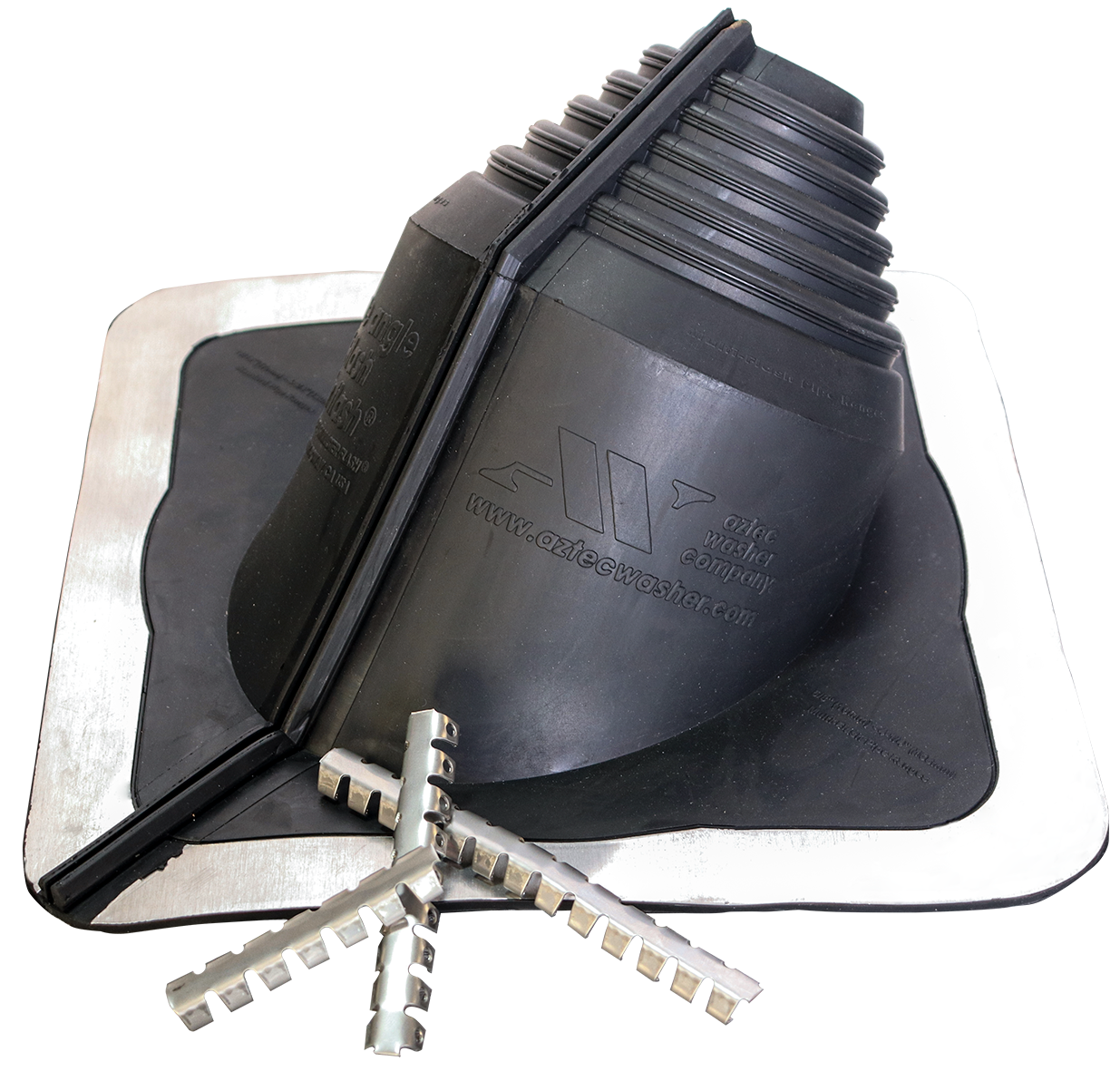

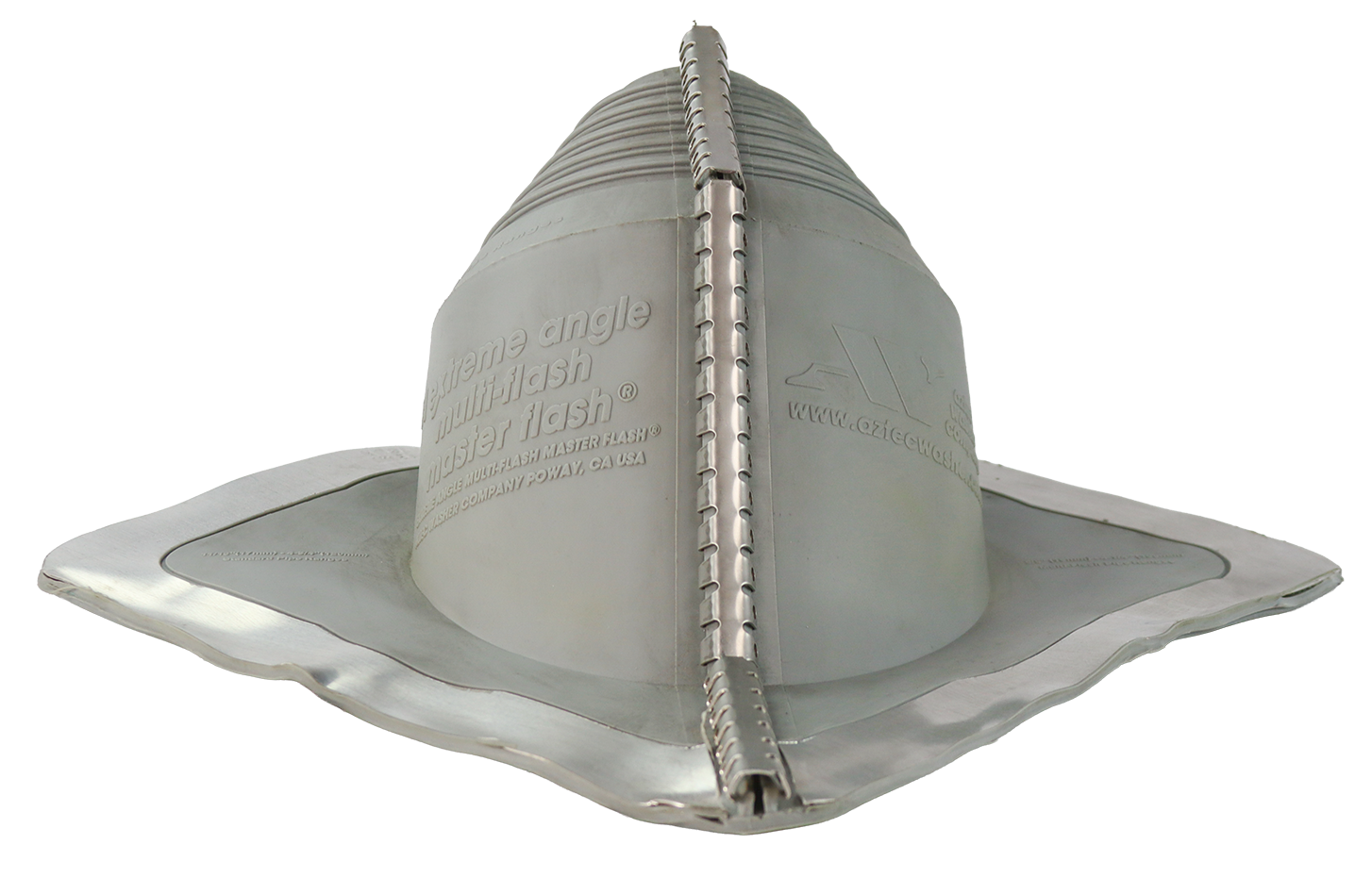

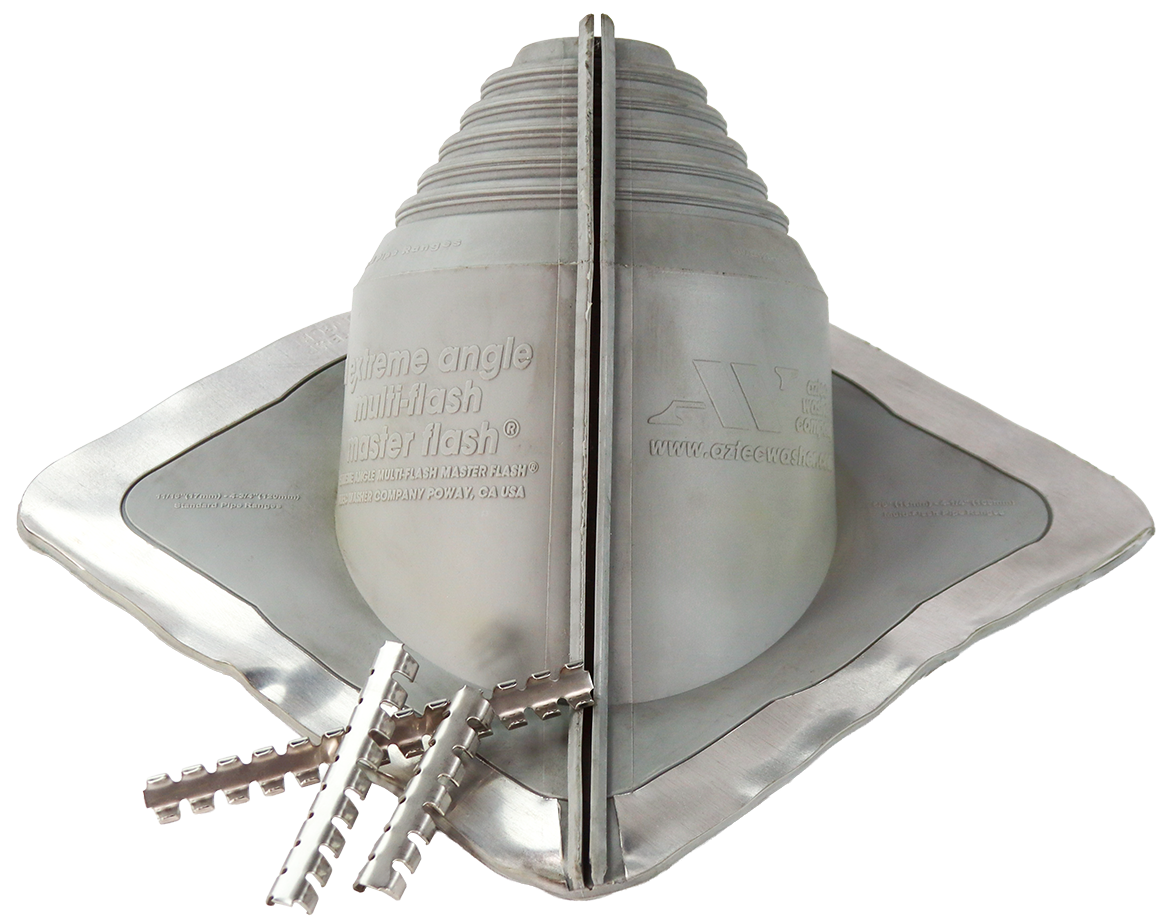

The Extreme Angle Master Flash® Pipe Boot Flashing is specifically designed for application to a metal roof with a 35° to 65° angle while still coping with commonly encountered pipe penetrations.
- US Patent # D979,102
- 1 size
- Fits: to 12” (0 to 304mm) Pipes
- Base: 11” (279mm

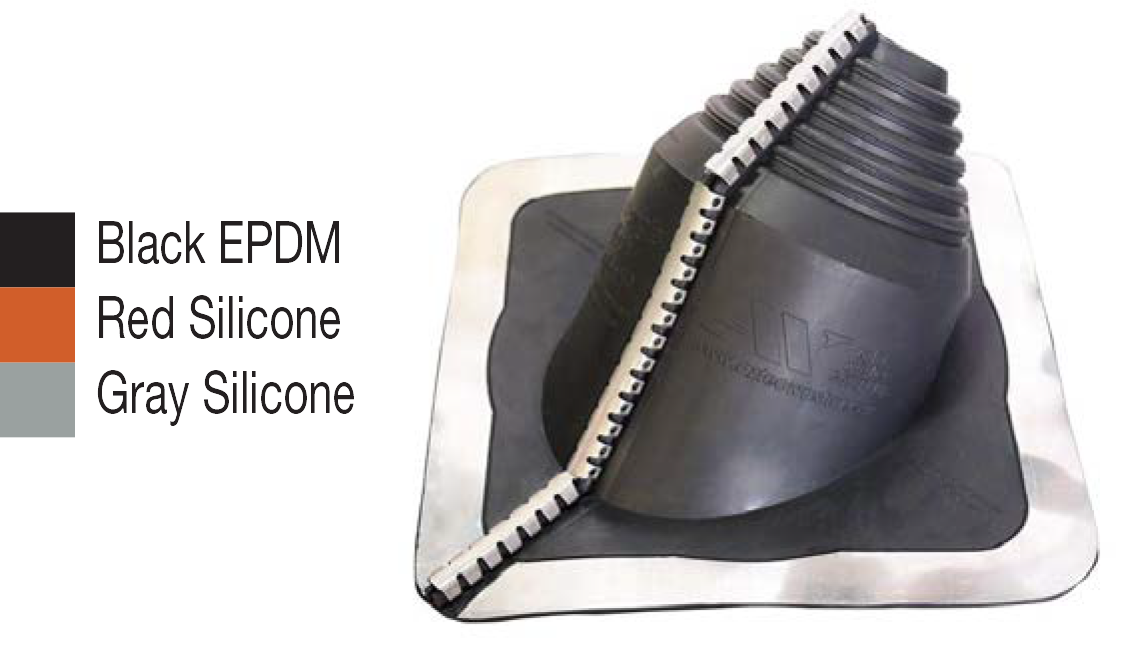

- Made of Black EPDM Rubber or High Temp Gray Silicone, the flashings are specially compounded for a maximum resistance to ultraviolet light and ozone corrosion.
- The built in 40º degree pitch Allows to handle any extreme roof pitch (35º – 65º), sleeve flexibility accommodates vibration and pipe movement caused by expansion/contraction.
- For standard or retrofit applications with a 3/12º to 16/12º pitch, while accepting & responding to the most encountered pipe penetrations. These flashings were designed to seal existing pipes/vents that require a wrap-around existing or hard to reach installation.
- A simple solution to flashing a penetration through a metal roof with an extreme pitch.
- Marked with dimensions to allow for easy sizing and installation.
- The No hassle stainless steel gripper included.
- 25 Year EPDM rubber and 35 Year Silicone Warranty
