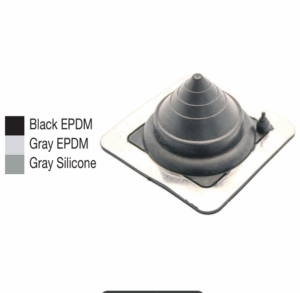

Low Profile Master Flash®

Specifically designed for sidewall or Low-Profile applications

The Low-Profile Master Flash® is available in thirteen EPDM colors or available in an FDA white high temp silicone

Pipe range is 0” (0mm) up to 4” (101mm) and the overall height 5/16” (8mm) with A flexible aluminum base 6-1/4” (158mm)

Call For Quote 800-927-4375

  • Specifically Designed for Sidewall or Low-Profile Applications
  • Applications: Drywall • Sidewall Applications • Stucco Walls • Corrugated Metal Sides • Roof Penetrations
  • 3 sizes(#1, #2, #3)
  • Fits: Closed Top to 12-1/2” (0 to 318mm) Pipes
  • Base Range: 6-1/4” to 16-1/2” (158 to 419mm)
  • Overall Height: 5/16” (8mm)
  • Made ofEPDM Rubber or FDA White High Temp Silicone, for maximum resistance to ultraviolet light and ozone corrosion.
  • Available EPDM Colors: Black, Dark Gray, Light Gray
[pdf-embedder url=”https://masterflash.aztecwasher.com/wp-content/uploads/2018/10/LOW-PROFILE-1-MF-PRODUCT-SIZE-COLOR-7819.pdf” title=”LOW-PROFILE #1 MF PRODUCT SIZE COLOR 7819″]
[pdf-embedder url=”https://masterflash.aztecwasher.com/wp-content/uploads/2018/10/LOW-PROFILE-2-MF-PRODUCT-SIZE-COLOR-7819.pdf” title=”LOW-PROFILE #2 MF PRODUCT SIZE COLOR 7819″]
[pdf-embedder url=”https://masterflash.aztecwasher.com/wp-content/uploads/2018/10/LOW-PROFILE-3-MF-PRODUCT-SIZE-COLOR-7819.pdf” title=”LOW-PROFILE #3 MF PRODUCT SIZE COLOR 7819″]

ADVANCED OZONE RESISTANCE tested to… EPDM 70 hour @ 500 pphm

HIGH-TEMPERATURE RESISTANCE

Tested to

Intermittent +135°C (+275°F)

Continuous +100°C (+212°F)

LOW-TEMPERATURE RESISTANCE tested to… – 55°C (-67°F)

COMPRESSION SET Maximum… 25%
