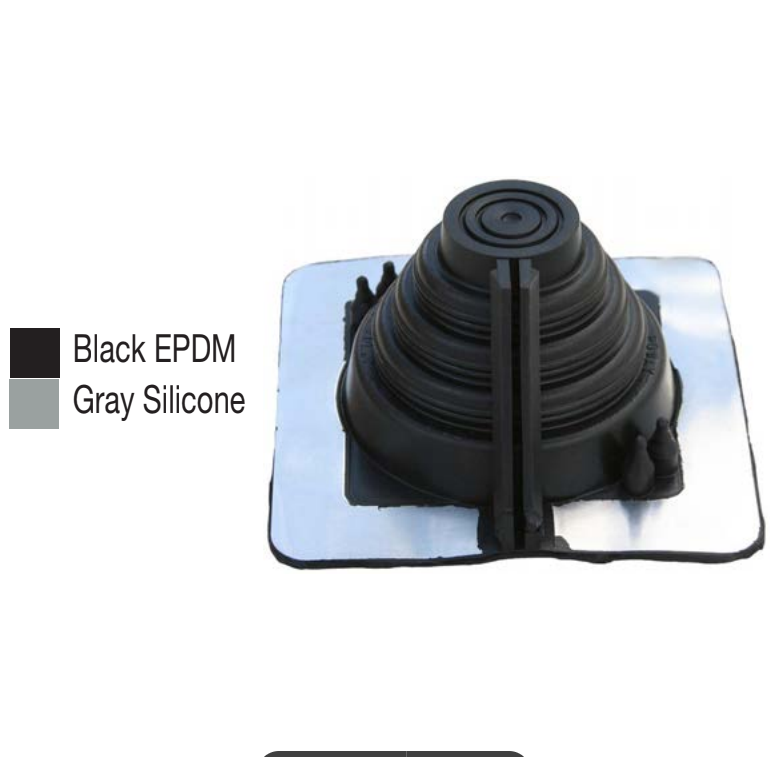

Multi-Port Master Flash®

Made as a standard or a retrofit flashing for the metal roof Industry

Made of black EPDM rubber or high temp gray silicone

The aluminum base allows the flashing to conform to any panel configuration

For electrical or solar applications

Ports Range: 1/4” to 3/8” (6 to 9.6mm)

Call For Quote 800-927-4375

  • TwoFlashings in One
  • Can be used as both a Standard flashing or a Retrofit flashing
  • Standard Fits: Closed Top to 23/4” (0 to 70mm) Pipes
  • Retrofit Fits:1-1/4” to2-1/4” (25 to 57mm) Pipes
  • Base:4-1/2” (114mm)
  • Ports: 1/64” to 3/8” (1to 9mm)
  • Weather Protection Made of black EPDM Rubber or High Temp Gray Silicone, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.
  • Cut lines clearly marked to allow for easy installation for multiple pipe sizes.
  • A flexible aluminum base allows the flashing to conform to any panel configuration and most roof pitches regardless of pipe location.
  • The No-hassle Stainless steel gripper included.

ADVANCED OZONE RESISTANCE tested to…

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)

COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
