Res-Lead Master Flash®

Res-Lead Master Flash® Mini, #1, #2, and #3 Features:

• The built in 20° pitch allows adaptability to almost any roof pitch including 45°
The pull tab design and easy smooth tear grooving is intended to eliminate razor knives and allow for a circular hole Easily used on Shingles, Tiles and other residential
roofing.

• Marked with dimensions to allow for easy sizing to fit each individual application. Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.

• 4 sizes (Mini, #1, #2, #3)

• Fits: Closed Top to 18” (0 to 457mm) Pipes

• Base: Mini 16” X 19-1/4” (410 X 490mm) #1 20” X 24” (508 X 609mm)
#2 26” X 30” (660 X 762mm) #3 35” X 35” (889 X 889mm)

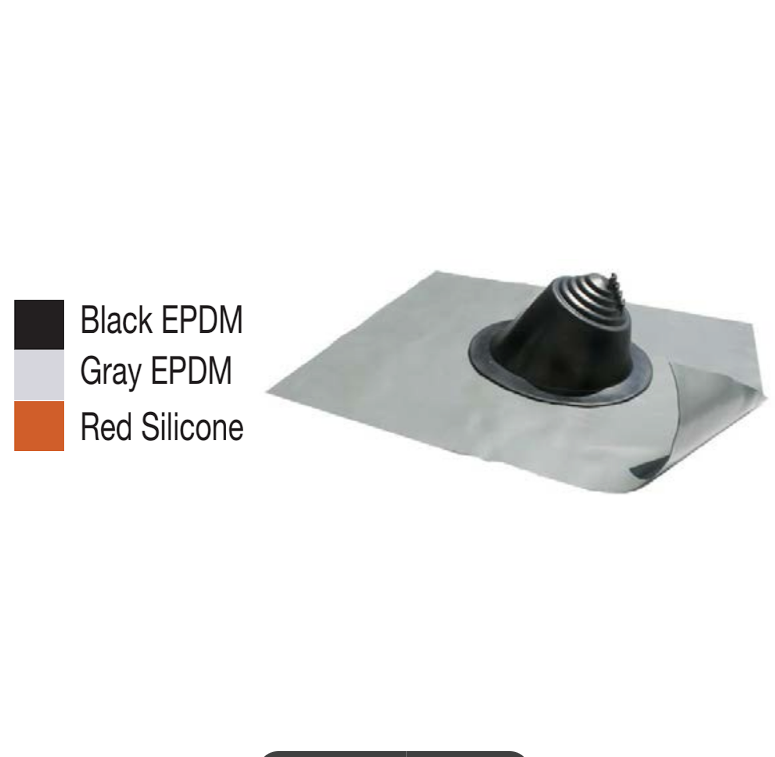

• Weather Protection Made of Black or Gray EPDM Rubber or High Temp Red, Gray Silicone, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.

• Environmentally safe acrylic coated Lead base panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.

• Made from an EPDM which is resistant to ultraviolet rays, cracking & weathering

• This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

• Aztec Washer’s products, including speciality sealing hardware and standard flashings, comply with California’s Proposition 65, also known as the Safe Drinking Water and Toxic Enforcement Act of 1986.

• 25 Year EPDM rubber and 35 Year Silicone Warranty

ADVANCED OZONE RESISTANCE tested to…

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW-TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
