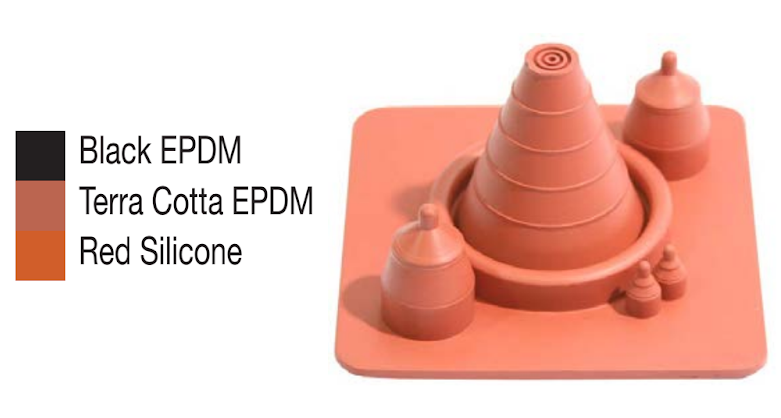

Solar Multi-Port CT Master Flash®

For small pipes/wires and solar applications on clay tile roofs

Available in two EPDM colors or high-temperature silicone

No Fasteners required

Fits: Closed to 1-15/16” (49mm) pipes

Small Ports for 3/8” (9mm) pipes or wires

Medium Ports for 3/4” (20mm) pipes or wires

Base: 4-1/2” (114mm)

Call For Quote

  • Four ports for cables or wires per flashing to accommodate copper pipe and electrical cabling
  • A simple solution designed for clay tile roofs.
  • No Fasteners required
  • Available in Terra Cotta, Black EPDM Rubber or High Temp Red Silicone which are both resistant to ultraviolet rays, cracking & weathering.
  • Fits: ClosedTopto 1-15/16” (0 to 49mm) Pipes
  • SmallPorts: 1/64” to 3/8” (1 to 9mm)
  • Medium Ports:3/16” to 15/16” (4 to 23mm)
  • Base: 4-1/2” (114mm)

ADVANCED OZONE RESISTANCE tested to…

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
