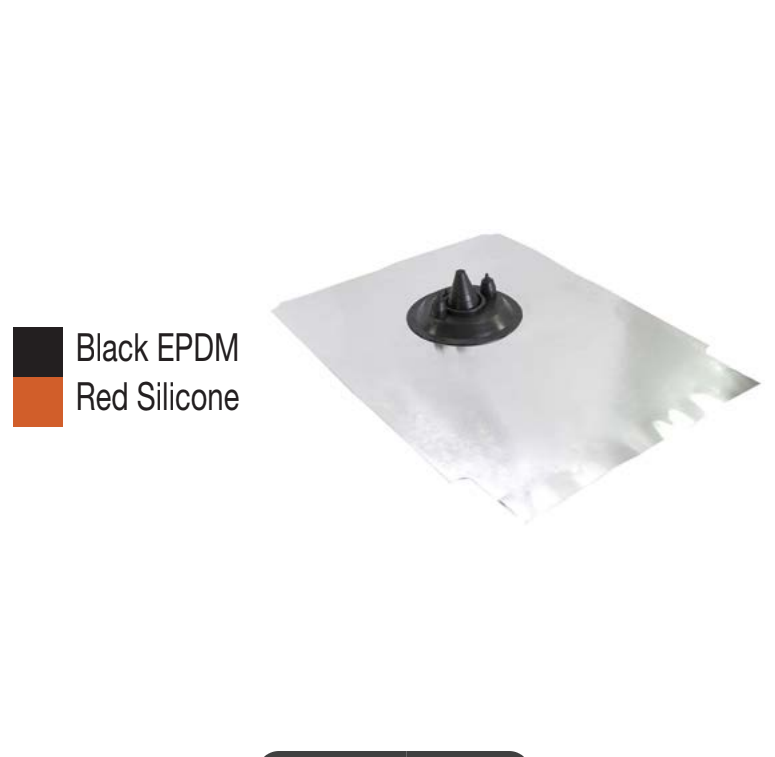

Solar Multi-Port LD Master Flash®

Solar Multi-Port Lead (LD) Master Flash® Features:

• Four ports for cables or wires per flashing to accommodate copper pipe and electrical cabling

• A simple solution designed for residential roof applications.

• Available in Black EPDM Rubber or High Temp Red Silicone which are both resistant to ultraviolet rays, cracking & weathering.

• This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

• Aztec Washer’s products, including speciality sealing hardware and standard flashings, comply with California’s Proposition 65, also known as the Safe Drinking Water and Toxic Enforcement Act of 1986.

• Fits: Closed Top to 1-15/16” (0 to 49mm) Pipes

• Small Ports: 1/64” to 3/8” (1 to 9mm)

• Medium Ports: 3/16” to 15/16” (4 to 23mm)

• Base: 16” X 19-1/4” (410 X 490mm) Lead

• The soft lead base is designed to form easily to clay tile roofs regardless of pipe location.

• 25 Year EPDM rubber and 35 Year Silicone Warranty

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
