Solar Multi-Port MR Master Flash®

Solar Multi-Port Metal Roof (MR) Master Flash® Features:

• Four ports for cables or wires per flashing to accommodate copper pipe and electrical cabling

• A simple solution designed for clay tile roofs.

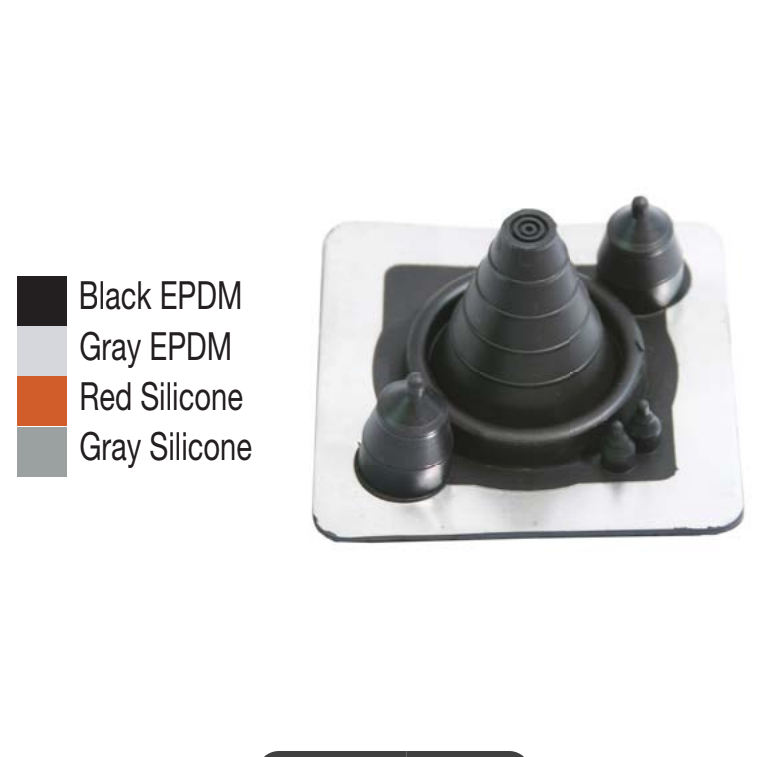

• Available in Black or Gray EPDM Rubber or High Temp Red or Gray Silicone which are both resistant to ultraviolet rays, cracking & weathering.

• Fits: Closed Top to 1-15/16” (0 to 49mm) Pipes

• Small Ports: 1/64” to 3/8” (1 to 9mm)

• Medium Ports: 3/16” to 15/16” (4 to 23mm)

• Base: 4-1/2” (114mm)

• The flexible aluminum Base is designed to mold to most panel configurations regardless of pipe location.

Specifically engineered to seal multiple small penetrations, such as electrical conduits, cables, or small-diameter pipes.
Reduces the need for multiple individual flashings, streamlining the installation process.

Solar Application-Specific:
Tailored for solar panel installations where multiple cables or small conduits penetrate the roof. Compatible with standard solar wiring configurations and layouts.

Solar Panel Installations:
Ideal for routing DC cables, ground wires, and microinverter connections through the roof.

HVAC Systems:
Sealing multiple refrigerant lines or electrical conduits.
General Electrical and Communication: Managing multiple penetrations for wiring or low-voltage cables in industrial or residential settings.
Installation Process:

• 25 Year EPDM rubber and 35 Year Silicone Warranty

ADVANCED OZONE RESISTANCE tested to…

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)

COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
