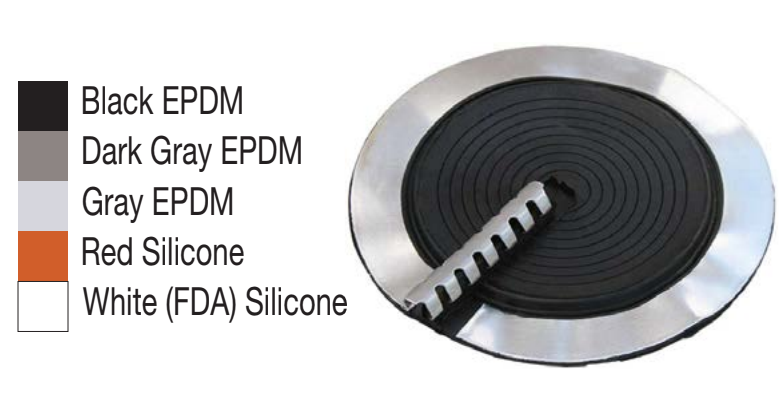

Low Profile Multi-Flash Master Flash®

Designed for sidewall or Low-Profile retrofit applications

Made of black, dark gray, light gray EPDM rubber or FDA white high temp silicone

Fits: Closed up to 4” (0-101mm) pipes

Base: 6-1/4” (158mm)

Overall Height: 5/16” (8mm)

Call For Quote

  • Specifically Designed for Sidewall or Low-Profile Applications
  • Applications: Drywall • Sidewall Applications • Stucco Walls • Corrugated Metal Sides • Roof Penetrations
  • 3 sizes(#1, #2, #3)
  • Standard Fits: Closed Top to 12-1/2” (0 to 318mm) Pipes
  • Retrofit Fits: Closed Top to 12-1/2” (0 to 318mm) Pipes
  • Base Range: 6-1/4” to 16-1/2” (158 to 419mm) • Overall Height: 5/16” (8mm)
  • Made of black, Dark Gray, Light Gray EPDM Rubber or FDA White High Temp Silicone, for maximum resistance to ultraviolet light and ozone corrosion.
  • Stainless Steel Gripper for Retrofit Applications Included

ADVANCED OZONE RESISTANCE tested to…

EPDM 70 hour @ 500 pphm • SILICONE 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE

Tested to

Intermittent EPDM +135°C (+275°F) • Silicone +260°C (+500°F)

Continuous EPDM +100°C (+212°F) • Silicone +225°C (+437°F)

LOW-TEMPERATURE RESISTANCE tested to…

EPDM – 55°C (-67°F) • Silicone – 74°C (-101°F)COMPRESSION SET Maximum… EPDM 25% • Silicone 50%
